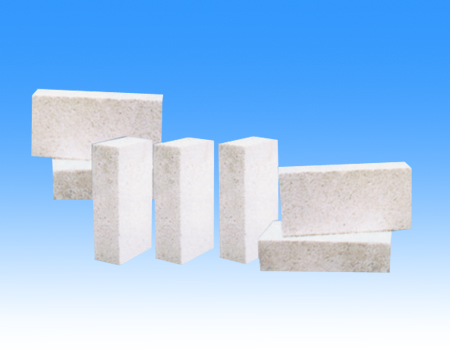

氧化铝空心球制品图
本制品采用纯氧化铝空心球，氧化铝微粉为主要原料，添加适量高温结合剂，经1750℃高温烧成。制品具有体积密度小、热容量小、强度高、封闭气孔多、抗剥落和热稳定性好等特点。用作高温窖炉保温材料和高温窖炉内衬。
Alumina Bubble Produvtis sintered at high temperature of 1750℃ and made maily feom pure Alumina Bubble,Alnmina micropowder definife high temprature cement. It has thecharacrers of low bulk density and thermal capacity,high strength, lots of invisible porosit, spalling resistance and good thermal steadiness. Lt is used as the high temperature insulaton material kikn inner liners.
技术指标 Main technical data
|
指标 Index 产品Product |
AQ-0.9~1.1 |
AQ-1.2~1.3 |
AQ-1.4~1.5 |
AQ-1.6~1.8 |
|
Al2O3(%) |
90 |
90 |
90 |
90 |
|
SiO2(%) |
5 |
5 |
5 |
5 |
|
Fe2O3（%） |
0.5 |
0.5 |
0.5 |
0.5 |
|
体积密度（g/cm3）Bulk density |
0.9~1.1 |
1.2~1.3 |
1.4~1.5 |
1.6~1.8 |
|
显气孔率(%) Apparent porosity |
69 |
69 |
69 |
69 |
|
常温耐压强度（Mpa）Comprssivc strcngth at RT |
20 |
23 |
25 |
28 |
|
0.1Mpa 荷重软化开始温度T0.6%(℃) Renforcemenfractoriness under 0.6Mpa load |
1600 |
1700 |
1700 |
1700 |
|
耐火度（℃） Refractoriness |
1650 |
1790 |
1790 |
1790 |
|
热稳定性1100风热冷 Thermal steadiness Time |
20 |
20 |
20 |
20 |
|
导热系数W/M.k(800℃) Heat conduction ratio |
0.7 |
0.7 |
0.8 |
0.9 |
|
用途 Application |
用于石化和陶瓷行业各种室炉，做保温材料和内衬保温材料。例：气化炉，炭黑炉，隧道窑，梭式窑等 Used as in sulation material and inner liners for all kinds of kilns in the industties of petrescence and ceramic like,gasify kiln,Carbon biack kiln bell jar kiln;tunnel kiln and shuttle kin etc. |
