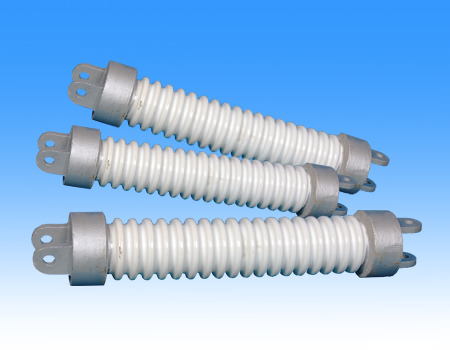

侧部振打瓷转轴

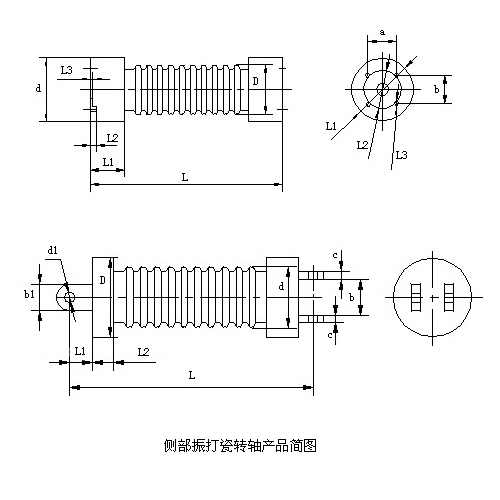

                                     侧部振打瓷转轴图

    电除尘器设备配套绝缘子，以95%氧化铝为主要原料，经1700℃高温烧成，具有机械强度高、介电强度高、耐酸碱、耐高温的优点。主要适应于电力、冶金、化工、有色金属等行业的侧部振打静电除尘器。
    The electric dusters are made from 95AI2O3 ceramic formulas as the main raw materials, molded in advanced cold isostatistically press technology, sintered at more than 1700℃ in high temperature tunnel kiln. They have the excellence of high mechanical strength, good thermal conduction, abrasion resistance, acid and alkali proof,high temperature resistant and high dielectric strength ets. They are widely used in static duster equipment for building materials, electric power, metallurgy and chemical industry.


技术条件 Technical conditions
    安装地海拔高度：≤1000米           Installing place's height above sea leavl: ≤1000m
    工作温度：0~350℃                  Working temperature: ≤350℃
    抗扭转负荷：≥4000N·m             Twisting moment:  ≥4000N·m

技术指标 Main technical data


产品型式 Version	产品型号Type	电瓷产品对应型号 electrical ceramic corresponding model	伞群数(个) unbrella fusiform num	主要尺寸 mm
				Main dimension
				L	D	L1	L2	d	d1	d2	d3	a	b
插口式 faucel form	JS11-460-B	JN-07203A	11	460	Φ102	35	53	Φ120	Φ18.5	-	-	-	53
	JS11-560-B		11	560	Φ102	35	53	Φ102	Φ25	-	-	-	32
	JS17-630-K	JN-08001C	17	630	Φ105	35	53	Φ120	Φ18.5	-	-	-	53
	JS18-630-B	JN-08001C	18	630	Φ102	35	53	Φ102	Φ18.5	-	-	-	53
	JS18-630-C		18	630	Φ105	35	53	Φ120	Φ18.5	-	-	-	20
	JS18-630-D		18	630	Φ125	35	53	Φ120	Φ18.5	-	-	-	58
法兰式 faucel form	JF11-390-A		11	390	Φ80	50	10	Φ120	Φ90	Φ60	4-M10	50	62
	JF11-394-A		11	394	Φ80	50	10	Φ100	Φ80	Φ60	4-M8	50	62
	JF11-390-B	JN-07201A	11	390	Φ102	53	10	Φ120	Φ88	Φ56	4-M10	58	67
	JF11-394-B1	JN-07202A	11	390	Φ102	53	10	Φ120	Φ90	Φ60	4-M10	50	62
	JF18-640-E		18	640	Φ150	80	14	Φ162	Φ111	Φ60	4-M10	50	62
	JF12-460-G		12	460	Φ86	60		Φ140	Φ100	Φ60	4-M12	70.7	70.7

本公司专业生产优质侧部振打瓷转轴等特种陶瓷产品，欢迎购买侧部振打瓷转轴产品到湖南株洲湘龙新材料有限公司来！
