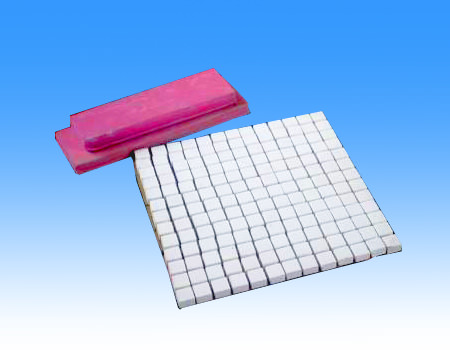

耐磨刚玉陶瓷衬板图
耐磨刚玉陶瓷衬板是由经1700℃高温烧制而成的超强耐磨刚玉陶瓷片与特种耐高温橡胶，用高强度耐高温粘结剂粘接而成的特种陶瓷，产品具有超强度、硬度、超级耐磨性及耐腐蚀、耐高温等特性。可广泛应用于火力发电厂、冶金钢铁、陶瓷化工等行业的各种管道和设备内作防磨内衬，其耐磨度是锰钢的300倍，高铬铸铁的200倍。
Tte wear-resistant corundum liner plates are the special ceramic products which are made of super strength wear-resistant corundum ceramic flakes burnt at 1700℃ and high temperature resistant special rubber. Those are bonded with high intensity and high temperature resistant binding agent. They have the excellence of super hardness, high strength, wuper wear resistant and high temperature resistant. They are widely used as corrosionproof inside linings of all kinds of different equipments and pipes in heat engine plant, metallurgy,steel,ceramics, chemical industry etc.Their abrasion strength is 300 times as manganese steel and 200 times as high chromium castiron.
技术指标 Main technical data
|
耐磨刚玉陶瓷瓷质指标 For wear-resistant corudum ceremic |
|
|
洛氏硬度 Hardness(HRA) |
80 |
|
抗压强度 Anti-press strenght(Mpa) |
1200 |
|
体积密度 Volunm(g/cm3) |
3.6 |
|
耐磨度 Abarsion strength(g)<(p=74N n=800rpm t=30 min) |
0.0002 |
本公司专业生产优质耐磨刚玉陶瓷衬板等特种陶瓷产品，欢迎购买耐磨刚玉陶瓷衬板产品到湖南株洲湘龙新材料有限公司来！
