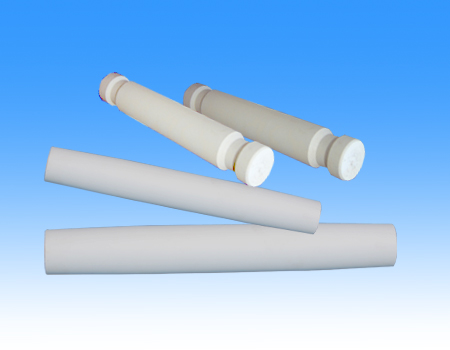

顶部振打(锥形)瓷绝缘子轴图
电除尘器设备配套绝缘子，以95%氧化铝为主要原料，经1700℃高温烧成，具有机械强度高、介电强度高、耐酸碱、耐高温的优点。主要适应于电力、冶金、化工、有色金属等行业的顶部振打静电除尘器。
The electric dusters are made from 95AI2O3 ceramic formulas as the main raw materials, molded in advanced cold isostatistically press technology, sintered at more than 1700℃ in high temperature tunnel kiln. They have the excellence of high mechanical strength, good thermal conduction, abrasion resistance, acid and alkali proof,high temperature resistant and high dielectric strength ets. They are widely used in static duster equipment for building materials, electric power, metallurgy and chemical industry.
技术指标 Main technical data
|
型号Type |
锥度Chamfer |

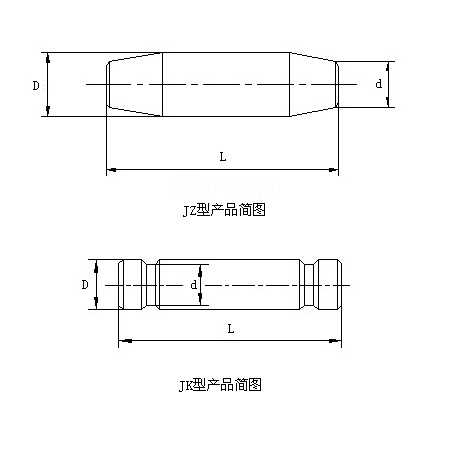

主要尺寸 Main dimension |
|
D |
d |
L |
|
JK1-520 |
|
75 |
63 |
520 |
|
JZ3-520 |
Morse No.3 |
70 |
- |
520 |
|
JZ8-600 |
1:8 |
70 |
- |
600 |
|
JZ8-520 |
1:8 |
60 |
- |
520 |
|
JZ5-500 |
1:5 |
60 |
- |
500 |
|
JZ5-430 |
1:5 |
60 |
- |
430 |
